Kingston 32GB USB Stick Repair, with SMI3271AD Controller

I have a 32GB Kingston flash drive with an SMI3271AD controller that wouldn’t be detected and couldn’t be repaired. In such cases, I employ a variety of applications. From the most basic programs that do not require specialized knowledge to the most complicated applications. You may get all of these programs by clicking on this link. Let’s have a look at how I made it work.

According to the photo I posted of the flash, the model is a Kingston DataTraveler Micro with 32GB of capacity. This flash is available with capacities of 64 GB or higher on Kingston’s website. Also, the part number of this flash is printed as DTMC3G2/64GB on this page, whereas mine was DTMC3/32GB. Furthermore, a search on the internet reveals that the box of this flash differs from the box shown on the page. G most likely stands for generation. According to the ChipGenius memory manufacturer, it was SanDisk; I don’t want to say that this flash is fake, but I think it is suspicious.

When I ran the ChipGenius application, it produced the following results:

Device Type:Mass Storage Device

Protocal Version: USB 2.00
Current Speed: High Speed
Max Current: 500mA

USB Device ID: VID = 090C PID = 2000

Device Vendor: SMI Corporation
Device Name: USB DISK
Device Revision: 1100

Manufacturer: SMI
Product Model: USB DISK
Product Revision: 1100

Controller Vendor: SMI
Controller Part-Number: SM3271AD - ISP 210429-DG1
Flash ID code:      453C98B3 - SanDisk - 1CE/Single Channel [TLC] -> Total Capacity = 32GB

ChipGenius Screenshot:

I was able to find a suitable recovery program for this flash by searching for its part number on Google and the usbdev.ru website. We offer two program types for SMI controllers: SMI Tools and the Dyna Mass Storage Production Tool, a Dyna program for economical SMI chips. I’ve seen a lot of garbage and low-quality flash, but this is one of the worst. The targeted program version, Star_SM3271series_S1215, was not easily restorable.

The point was that the Flash ID of this flash memory was 453C98B3, which is currently not available in the software I installed or in any other software, so it cannot be recovered. (Full Flash ID is 453C98B3F66B). It seems there is another flash recovery file with this memory ID and the IC controller SM3281, and more precisely, this version of the software (Star_SM3281series_U0204). The problem is that the controller IC is no longer the same! However, the output of the software was as follows:

In the Star_SM3271series_S1215 settings, there is a section called Force Flash ID that applies the Flash ID settings you enter manually or from the list. Considering that we have the name that we need to find from the above photo.

If you look carefully, the desired flash ID is 453C98B3 76 6B, which means only the last part differs: 76 6 B. Of course, this matter was found by chance, and if this matter had not happened, I was considering another model 7679 to enter it manually. I think these flash ICs are very similar, and there won’t be any problems. (Pay attention that both this 766B and 7679 and my flash are all 32 GB)

Download Star_SM3271series_S1215

Download Star_SM3281series_U0204

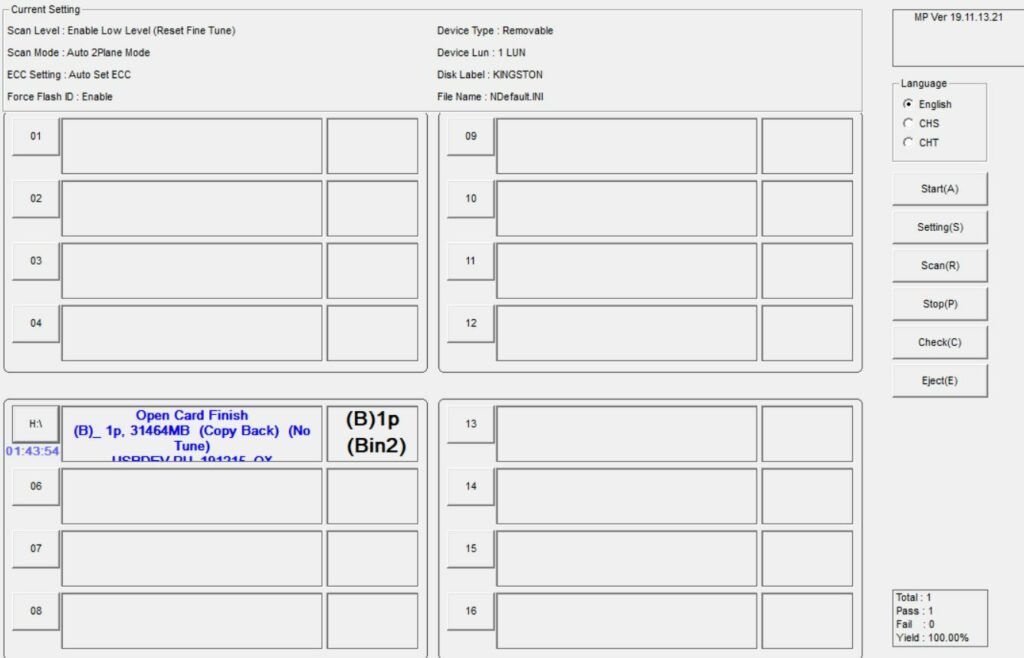

I started the recovery and it took about 2 hours:

To make sure that the usb stick works well, I tested it with H2testw software and the result was without errors:
