Data+ 32GB USB Stick Repair, with SMI3271AD Controller

I had a Data+ 32GB flash drive with SMI3271AD controller for repair, which did not run and obviously could not be formatted. In such a situation, I use different programs. From the easiest programs that do not do specialized work to the most advanced programs. You can download all these programs from this link.

I ran the ChipGenius program and it gave the following output:

Protocal Version: USB 2.00
Current Speed: High Speed

USB Device ID: VID = 090C PID = 1000

Device Vendor: USB
Device Name: Flash Disk
Device Revision: 1100

Manufacturer: USB
Product Model: Flash Disk
Product Revision: 1100

Controller Vendor: SMI
Controller Part-Number: SM3271AD - ISP 191025-DG1
Flash ID code:      2CA40832 - Micron - 1CE/Single Channel [TLC] -> Total Capacity = 32GB

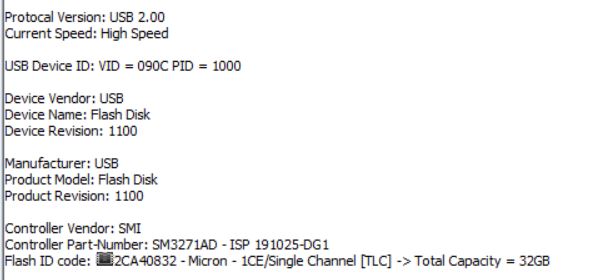

ChipGenius Screenshot :

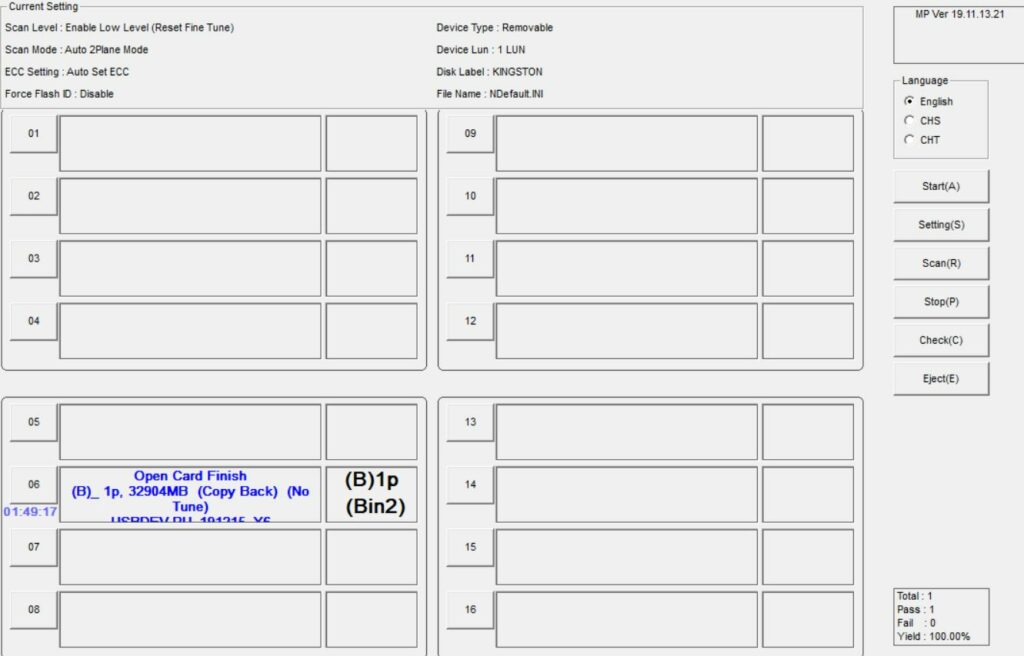

I was able to find the suitable recovery program for this flash by looking for the part number of this flash on Google and the usbdev.ru website. We have two sorts of programs for SMI controllers: SMI Tools and Dyna Mass Storage Production Tool, which Dyna program is for cheap and economical SMI chips. I’ve seen a lot of garbage and low-quality flash, but this is one of the worst. The targeted program version was Star_SM3271series_S1215, which was restored with nearly the same settings after nearly 2 hours. You can change the brand, but I let it stay the same as Kingston.

Download Star_SM3271series_S1215
